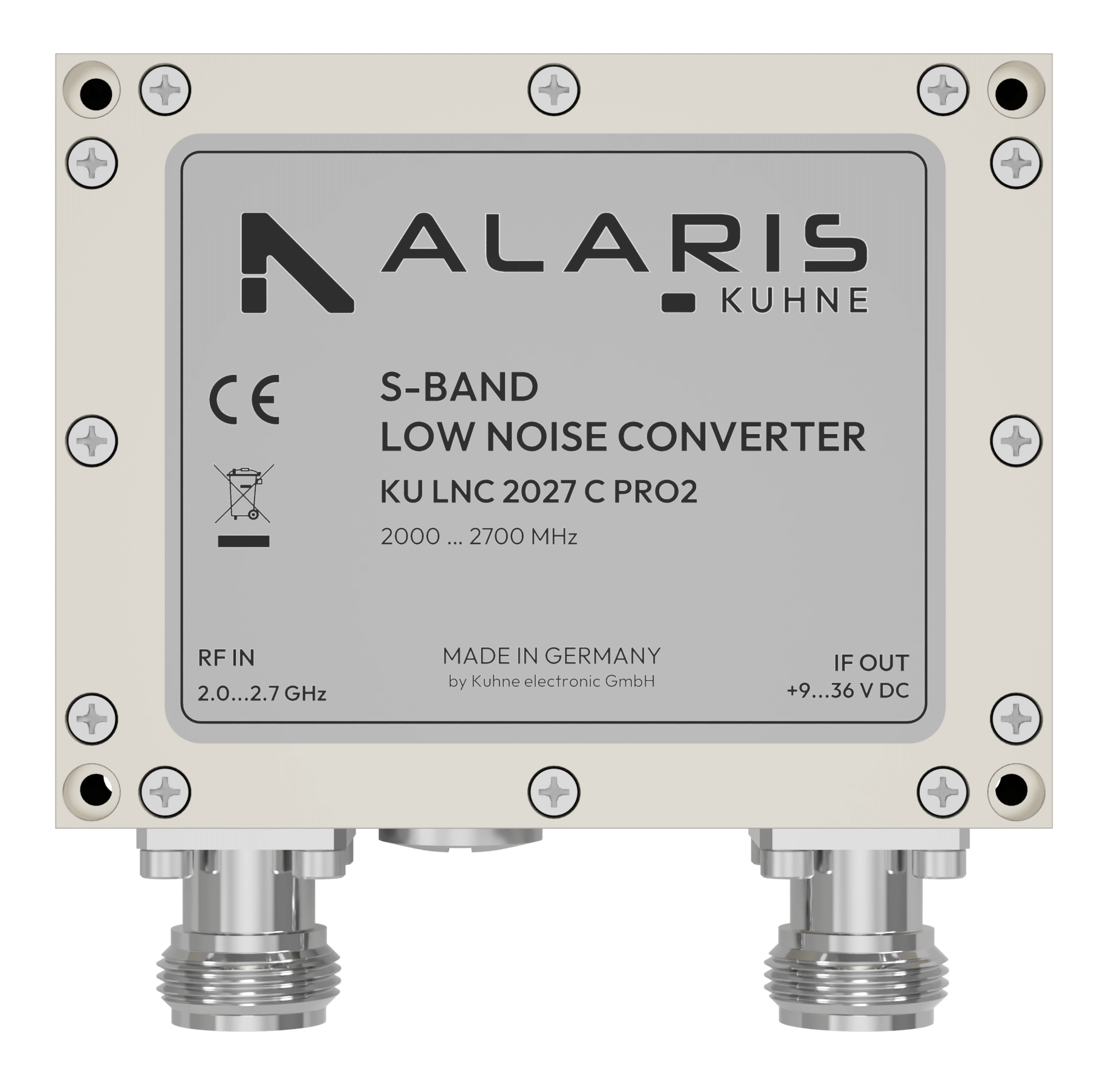

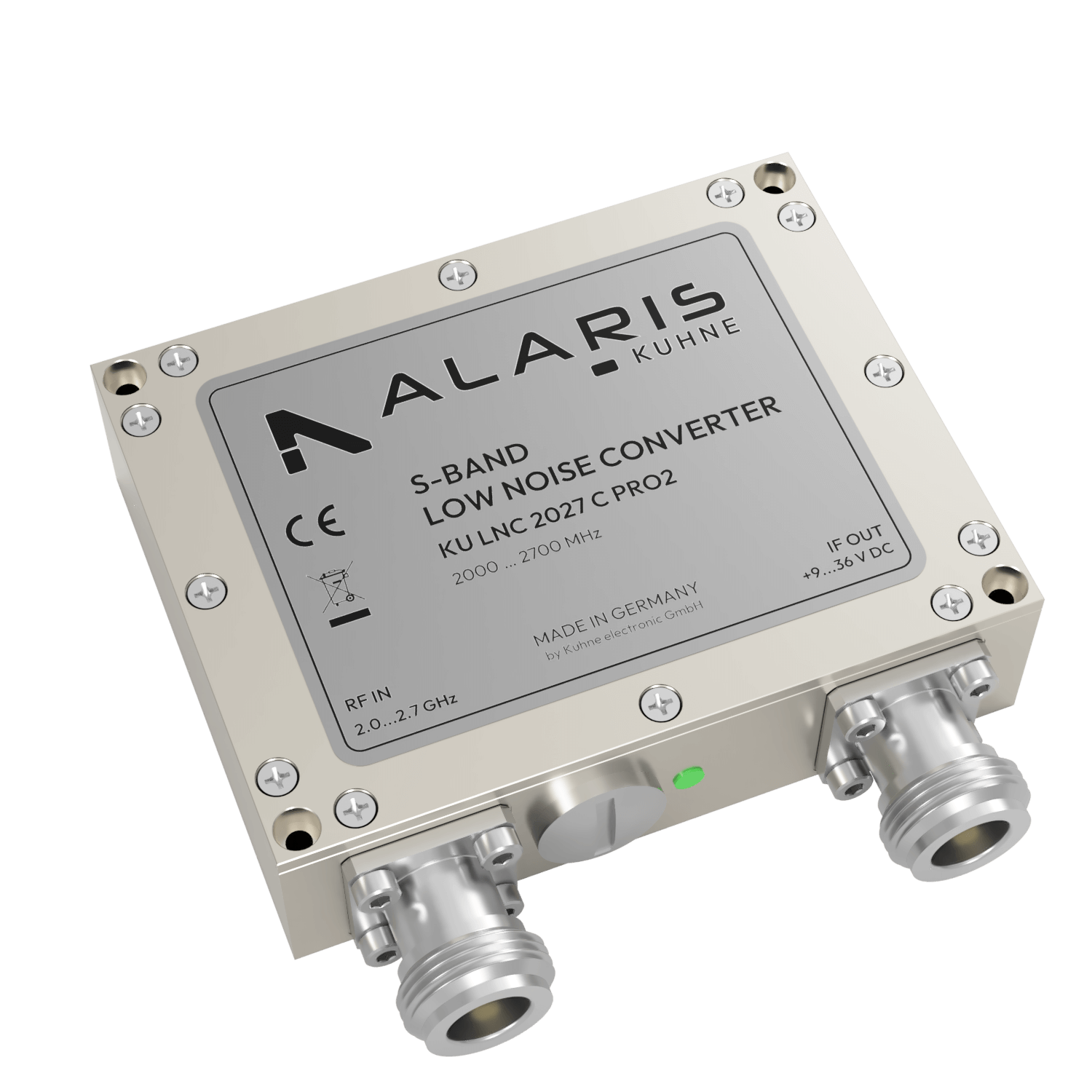

KU LNC 2027 C PRO2
Down Converter, 2000 ... 2700 MHz
Working range of the KU LNC 2027 C PRO is the frequency range 2000 to 2700 MHz. The standard IF range is 160 to 860 MHz. Due to four configurable oscillator frequencies the down converter can be used with different receivers. An additional user defineable oscillator frequency solves special requirements on the IF range. For more flexibility the gain of the down converter is setable in two steps. The KU LNC 2027 C PRO comes in a rugged milled aluminium. The down converter is water resistant and ready for outdoor use. For tower mount application a suitable mounting clamp is available.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNC 2027 C PRO2
-
Ideal applications
-
-
Broadcast
- Digital broadcast
- Satellite news gathering
- Wireless backhaul
-
Broadcast
Downloadable Content
- Design Features
-
Low noise figure
Large bandwidth
Low phase noise oscillator
High frequency stability of the oscillator
High linearity
Antenna port protected against static discharge
Small and light-weight to allow easy pole mounting
Tri-colour LED indicates unit status and gain mode setting
Overvoltage protection and reverse polarity protection
Remote power supply via output connector switchable gain switchable local oscillator frequencies normal or reverse output spectrum selectable
IP67 protection class
- Frequency range
- 2000..2700 MHz
- Noise figure @ 18°C
- typ. 0.8 dB, max. 1.0 dB
- Gain @ 25°C
- typ. 35 dB / 24 dB
- Output IP3
- 25 dBm
- Maximum input power
- 1 mW (0dBm)
- Frequency range (IF)
- 160..860 MHz
- LO accuracy @ 18°C
- +/- 2 ppm
- LO frequency stability
- +/- 3 ppm
- Supply voltage
- +9 ... +36 V DC
- Current consumption
- typ. 250 mA @ 12V DC
- Maximum case temperature
- IP67
- Dimensions (mm)
- 82 x 64 x 22
- Weight
- 230 g
