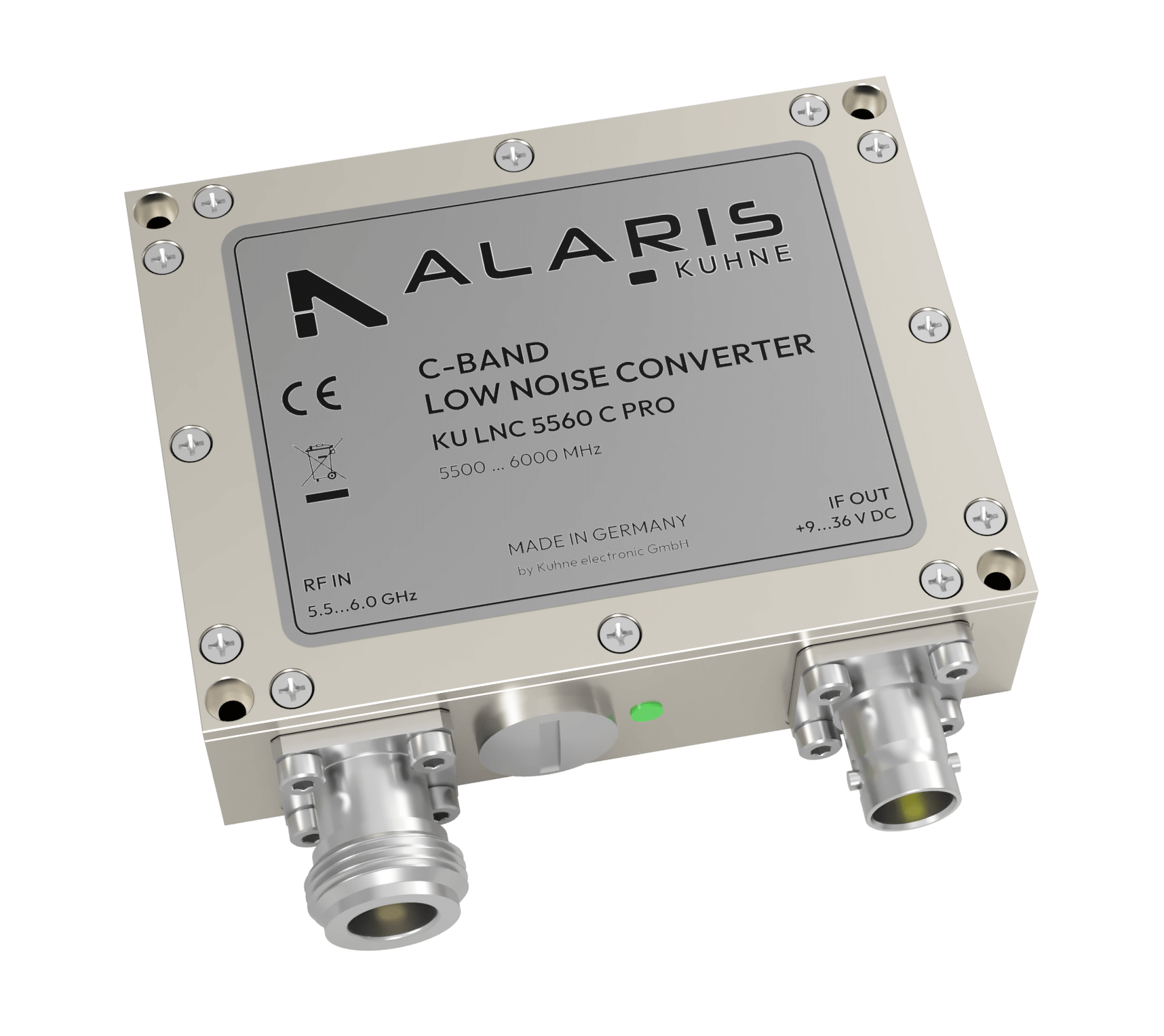

KU LNC 5560 C PRO
Down Converter, 5500 ... 6000 MHz
With a RF operating frequency range from 5500 to 6000 MHz and a standard IF range from 300 to 900 MHz the the KU LNC 5560 C PRO can be used highly flexible. Due to four configurable oscillator frequencies the down converter can be used with different receivers. An additional user defineable oscillator frequency allows for specific requirements on the IF range. For more flexibility the gain of the down converter can be set in two steps. The KU LNC 5560 C PRO comes in a rugged milled aluminium and is water resistant and ready for outdoor use. For tower mount application a suitable mounting clamp is available.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNC 5560 C PRO
-
Ideal applications
-
-
Broadcast
- Digital broadcast
- Satellite news gathering
- Wireless backhaul
-
Broadcast
- Design Features
- Low noise figure Large bandwidth Low phase noise oscillator High frequency stability of the oscillator High linearity Antenna port protected against static discharge Small and light-weight to allow easy pole mounting Tri-colour LED indicates unit status and gain mode setting Overvoltage protection and reverse polarity protection Remote power supply via output connector switchable gain switchable local oscillator frequencies normal or reverse output spectrum selectable
- Frequency range
- 5500..6000 MHz
- Noise figure @ 18°C
- typ. 1.5 dB, max. 2.0 dB
- Gain @ 25°C
- typ. 35 dB
- Output IP3
- 25 dBm
- Maximum input power
- 1 mW (0dBm)
- Frequency range (IF)
- 300..900 MHz
- LO accuracy @ 18°C
- +/- 2 ppm
- LO frequency stability
- +/- 3 ppm
- Supply voltage
- +9 ... +36 V DC
- Current consumption
- typ. 250 mA @ 12V DC
- Maximum case temperature
- 230 g
- Dimensions (mm)
- 82 x 64 x 22
