KU PA BB 003350 - 15 B

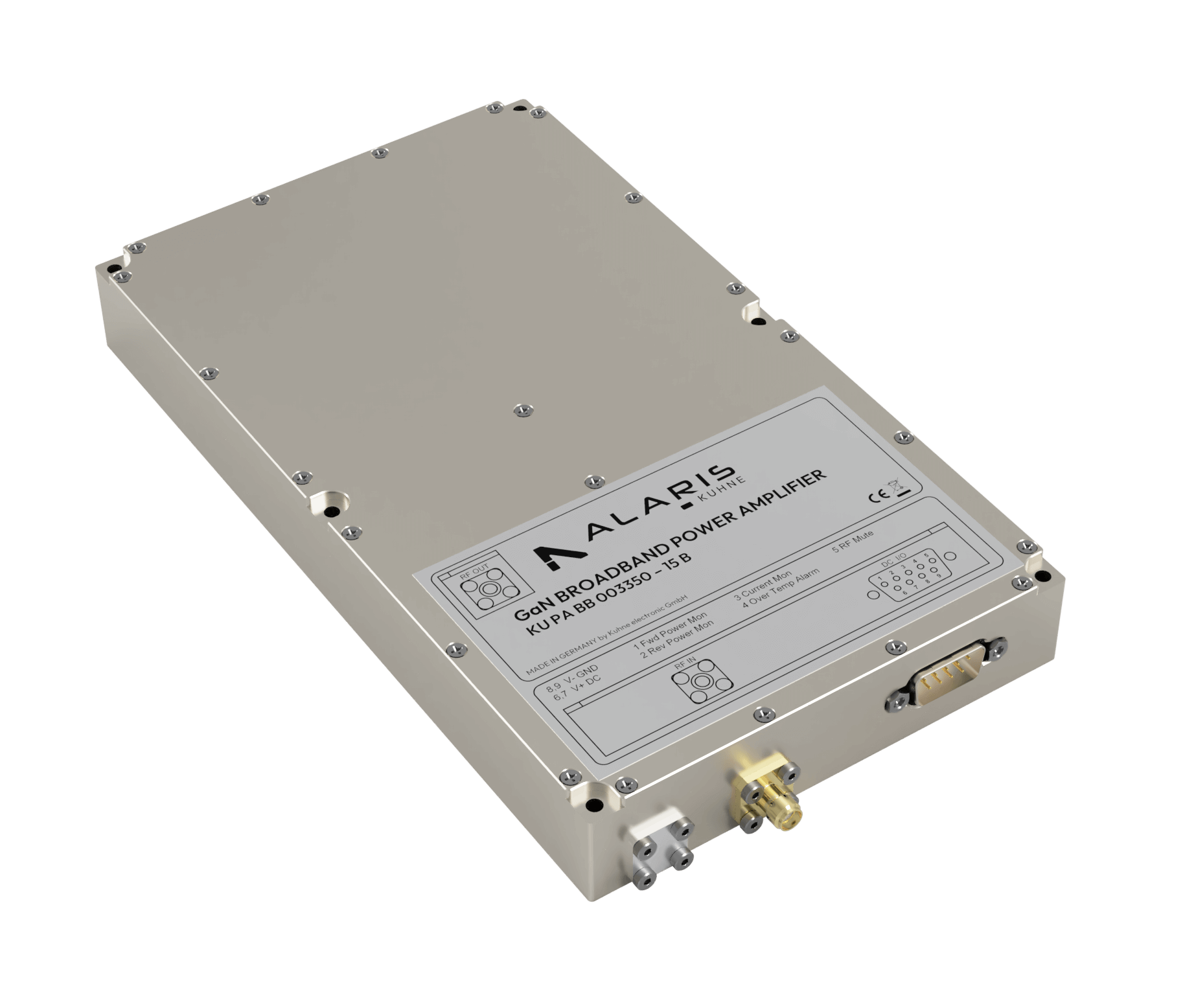

Wideband Power Amplifier, 30 ... 3500 MHz, 15 W
The KU PA BB 003350-15 A / B has a gain of at least 39 dB in large-signal operation at 15 W output power and can therefore be fed with a low input power of less than 2 mW. The amplifier has many monitor and control signals, for example the monitoring of temperature, current consumption, forward and reverse power as well as a fast mute function for switching off the RF signal. For the simultaneous disruption of several radio services, an A version with two equivalent RF inputs and an internal broadband combiner is available.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU PA BB 003350 - 15 B
-
Ideal applications
-
-
Survey and measurement
- EMC Testing
- RF performance testing
- RF systems support
-
Electronic countermeasures
- Counter UAS
- Counter RCIED
- Comms jamming
-
Survey and measurement
- Design Features
-
High bandwidth Variety of analog monitor signals Very fast mute functionality High efficiency Low small and large signal gain ripple
- Frequency range
- 30..3500 MHz
- Gain (small signal)
- min. 45 dB
- Harmonic rejection
- min. 12 dB
- IM3
- min. 12 dBc @ 41.7 dBm PEP
- Supply voltage
- +18 ... 36 V DC
- Quiescent current
- max. 2.5 A @ 24 V DC
- Current consumption
- max. 3,6 A @ 24 V DC
- Mute-functionality switching time
- max. 10 kHz
- Weight
- 950 g (typ.)
- Dimensions (mm)
- 200 X 115 X 25 mm
