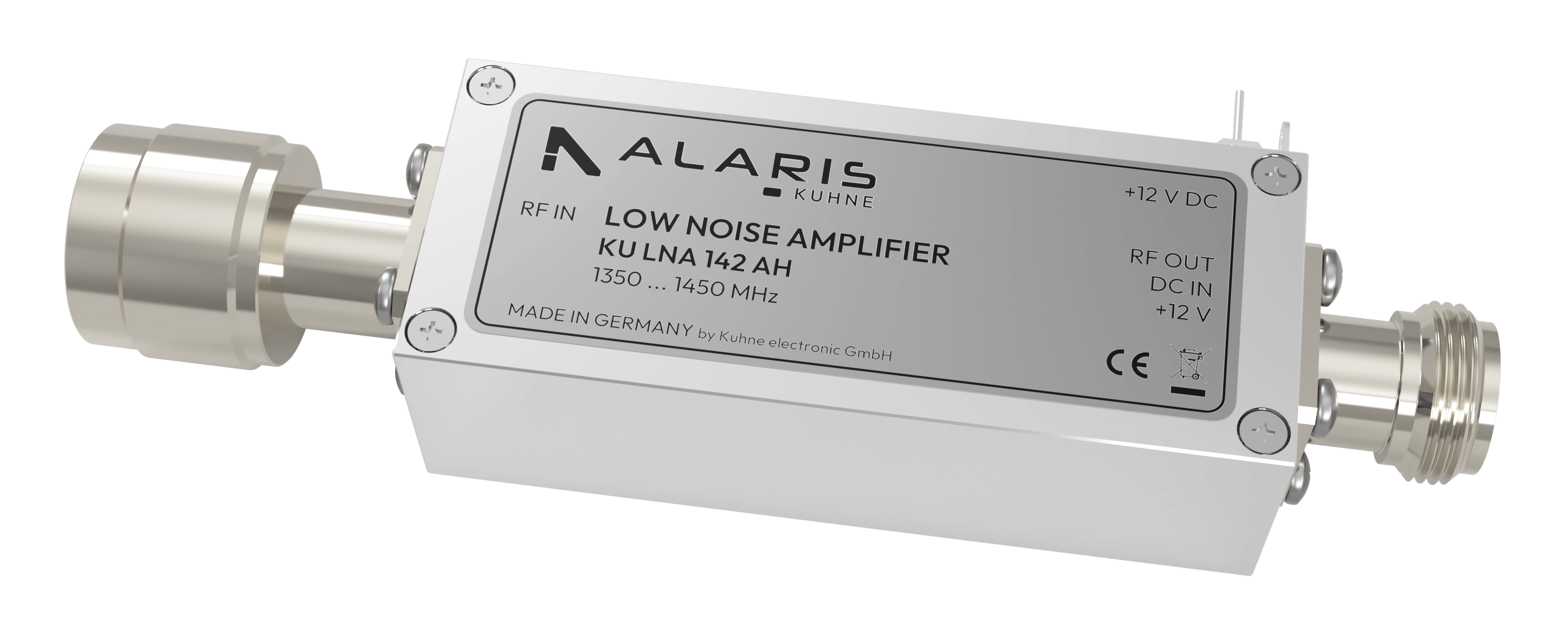

KU LNA 142 AH
Super Low Noise Preamplifier, 1350 ... 1450 MHz
Download datasheet
Super Low Noise Amplifier for Radio Astronomy. Our radio astronomy preamplifier for the 1400 MHz band provides an extremely low noise figure. It is excellent for receiving weak signals from space. The preamplifier can be added to the receiving system without additional adaptors because of the male input connector and female output connector.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA 142 AH
Ideal application and market usage
-
Ideal markets
-
-
Industrial
- Aviation
- Test and Measurement
-
Safety & Security
- Policing
- Defence
- Homeland security
- Border control
-
Telecommunications
- Telecoms providers
- Broadcast
-
Space & Science
- Research institutes and academia
-
Industrial
-
Ideal applications
-
-
Spectrum management
- Spectrum monitoring
- Source geolocation
- Radio direction finding
-
Signals intelligence
- Radio direction finding
- Communications intelligence
- Electronic intelligence
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Spectrum management
- Design Features
- Extremely low noise figure, Good input return loss (low VSWR), Unconditionally stable - no parasitic oscillations in case of poor antenna match, Milled aluminium case, Small mechanical dimensions.
- Frequency range
- 1350..1450 MHz
- Noise figure @ 18 °C
- 0.4 dB +/- 0,05
- Gain, typ. 33 dB
- typ. 33 dB
- Maximum input power, 1 mW
- 1 mW
- Supply voltage,+9 ... 15 V DC
- +9 ... 15 V DC
- Current consumption, typ. 80 mA
- typ. 80 mA
- Operating case temp. range
- -40 ... +65 degrees C
- Input connector / impedance
- N-male, 50 ohms
- Output connector / impedance
- N-female, 50 ohms
- Case
- milled aluminium
- Dimensions (mm)
- 140 g (typ.)
