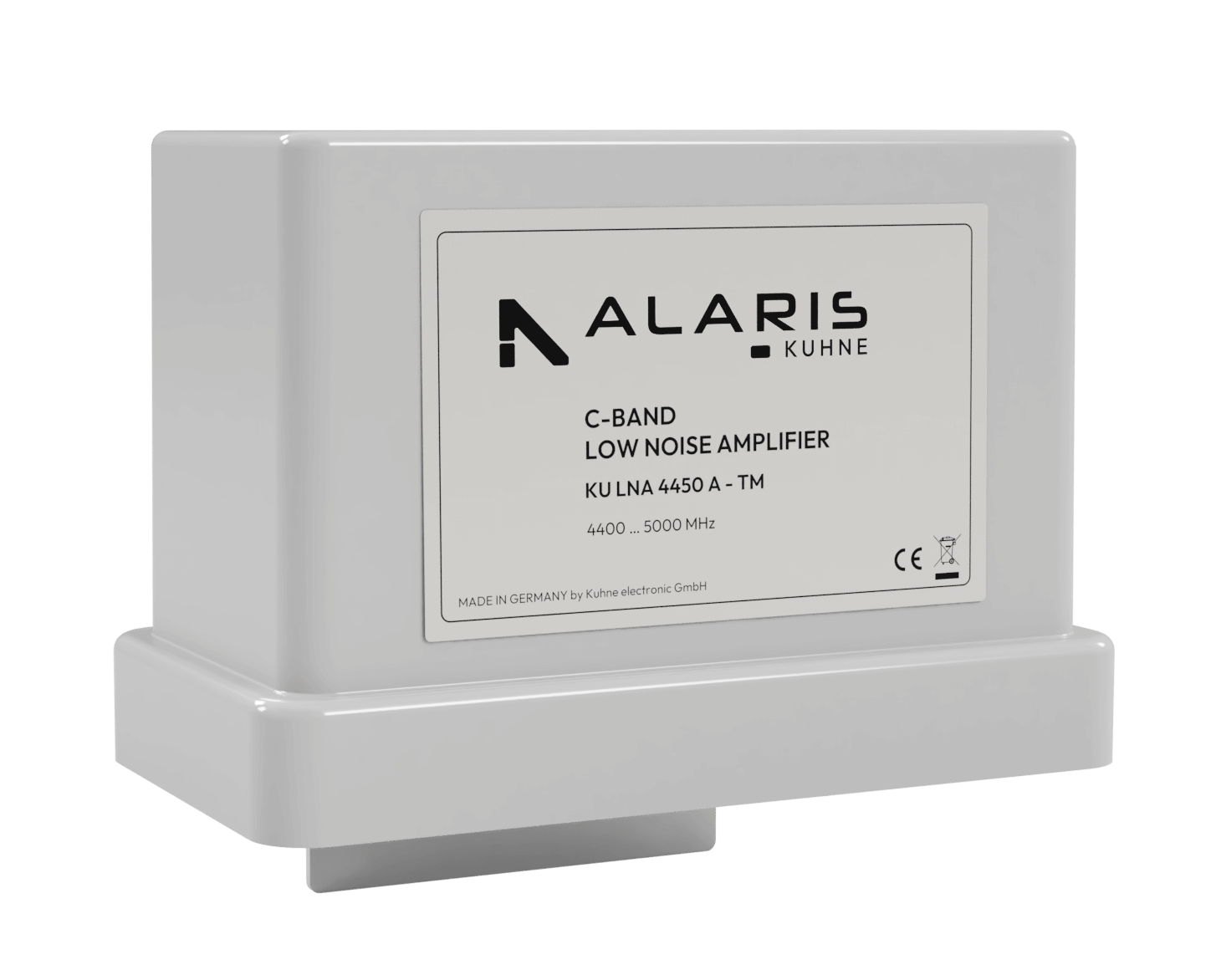

KU LNA 4450 A - TM
Super Low Noise Amplifier, 4400 ... 5000 MHz
Download datasheet
Super Low Noise Amplifier, 4400 ... 5000 MHz
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA 4450 A - TM
Ideal application and market usage
-
Ideal applications
-
-
Infrastructure management
- Sensing and telemetry support
- Traffic monitoring
- Remote control
- Emergency response
-
Spectrum management
- Spectrum monitoring
- Source geolocation
- Radio direction finding
-
Radar
- FMCW radar
- Speed and obstacle detection
- Motion sensing
- Foreign object detection
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Infrastructure management
- Design Features
- 3-pin connector MS3102E series for power supply
- Frequency range
- 4400..5000 MHz
- Noise figure @ 18 °C
- typ. 0.8 dB, max. 0.9 dB NF
- Gain, min. 24 dB
- min. 24 dB
- Maximum input power, 1 mW
- 1 mW
- Output power (P1dB), typ. 20 mW (+13 dBm)
- typ. 20 mW (+13 dBm)
- Output IP3, typ. +23 dBm (4750 MHz)
- typ. +23 dBm (4750 MHz)
- Input return loss (S11)
- min. 6 dB
- Output return loss (S22)
- min. 6 dB
- Supply voltage
- +8 ... 14 V DC
- Current consumption
- typ. 110 mA
- Operating case temp. range
- N-female, 50 ohms
- Output connector / impedance
- N-female, 50 ohms
- Case
- Case incl. V2A mounting clamp, IP43
- Dimensions (mm)
- 115 x 56 x 82
