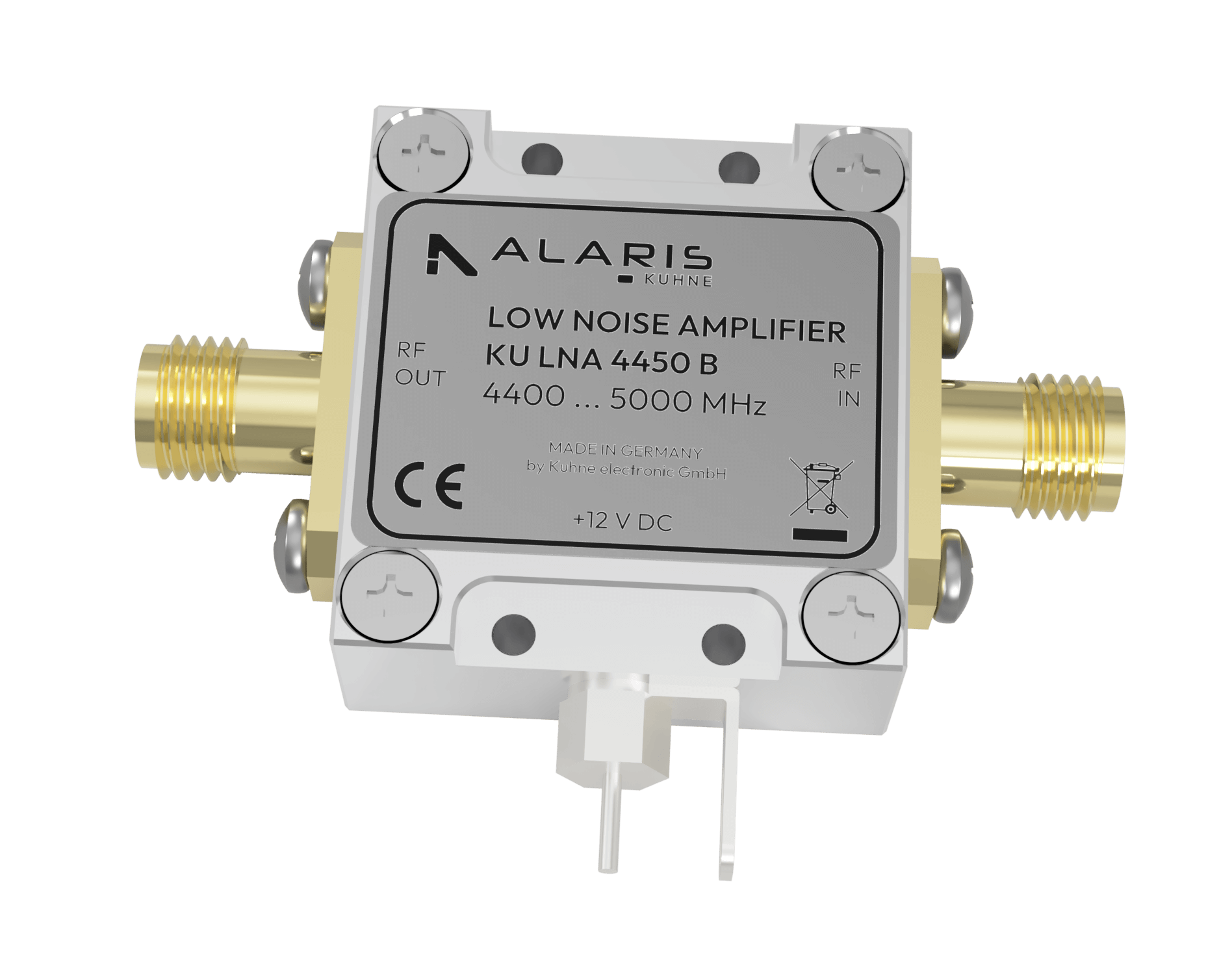

KU LNA 4450 B
Super Low Noise Amplifier, 4400 ... 5000 MHz
Download datasheet
Super Low Noise Amplifier, 4400 ... 5000 MHz
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA 4450 B
Ideal application and market usage
-
Ideal applications
-
-
Infrastructure management
- Sensing and telemetry support
- Traffic monitoring
- Remote control
- Emergency response
-
Spectrum management
- Spectrum monitoring
- Source geolocation
- Radio direction finding
-
Radar
- FMCW radar
- Speed and obstacle detection
- Motion sensing
- Foreign object detection
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Infrastructure management
- Design Features
- Low noise figure, High gain, High IP3, Reverse polarity protection, Small mechanical dimensions, Solder pin for direct power supply, Remote power supply via output connector
- Frequency range
- 4400..5000 MHz
- Noise figure @ 18 °C
- typ. 1,0 dB
- Gain, typ. 28 dB
- typ. 28 dB
- Maximum input power, 1 mW
- 1 mW
- Output power (P1dB), typ. 25 mW (+14 dBm)
- typ. 25 mW (+14 dBm)
- Output IP3, typ. 24 dBm
- typ. 24 dBm
- Input return loss (S11)
- typ. 6 dB
- Output return loss (S22)
- typ. 9 dB
- Supply voltage
- +6 ... 14 V DC
- Current consumption
- typ. 90 mA
- Operating case temp. range
- SMA-female, 50 ohms SMA-female, 50 ohms
- Case
- milled aluminium
- Dimensions (mm)
- 23 x 24.5 x 9
- Weight
- typ. 15 g
