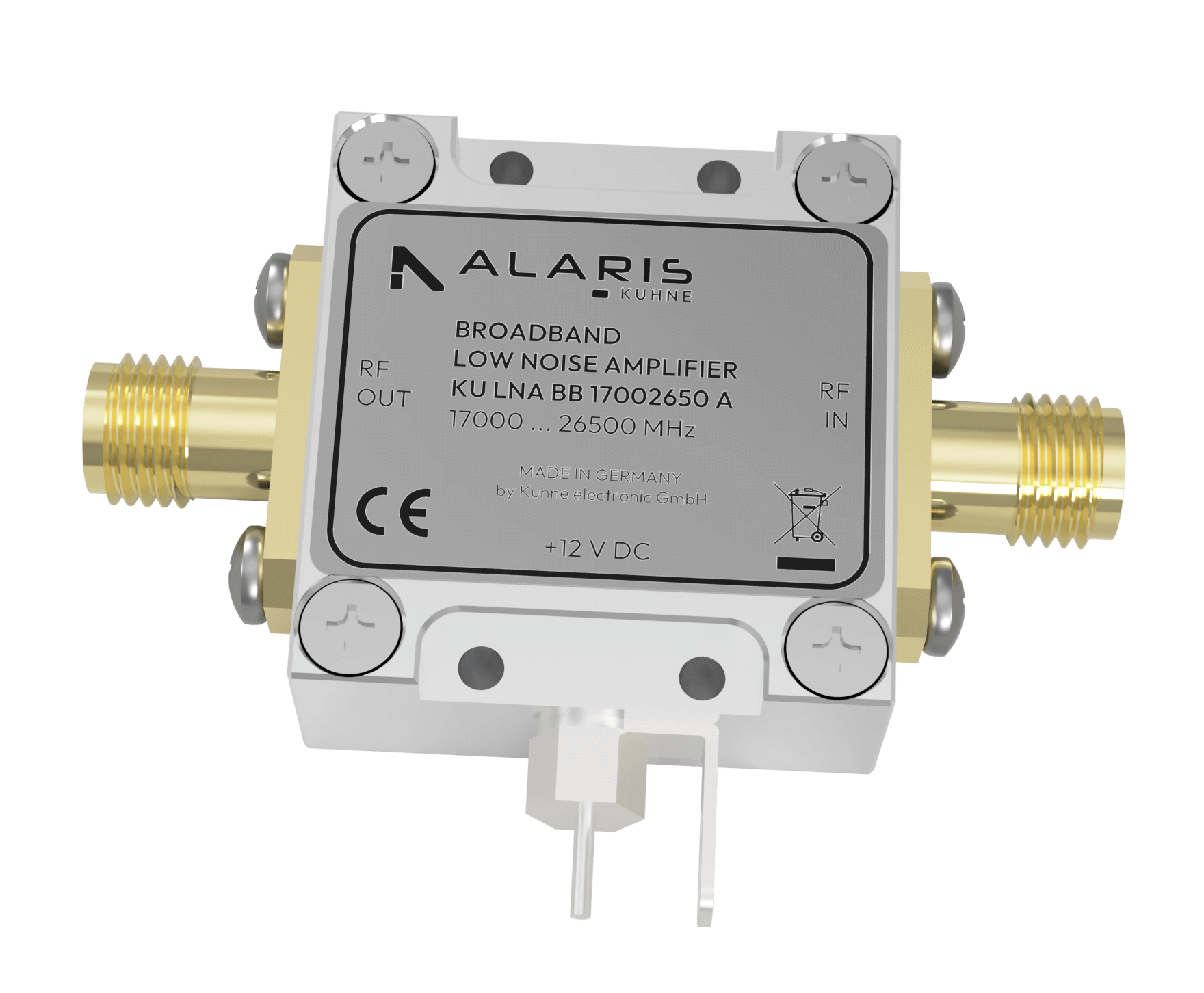

KU LNA BB 17002650 A
Broadband Amplifier, 17000 ... 26500 MHz
Download datasheet
The KU LNA BB 17002650 A has a bandwidth of 17 GHz to 26.5 GHz and is thus suitable for a variety of applications in the radio-frequency (RF) and microwave range. Furthermore, the low noise figure of between 2.8 dB and 3 dB in the range from 17 GHz to 24 GHz and between 3 dB and 2.4 dB from 24 GHz to 26.5 GHz with a gain of 23 dB minimizes the noise figure of the receiver. The PIN diode-based reverse polarity protection furthermore increases user-friendliness.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNA BB 17002650 A
Ideal application and market usage
-
Ideal applications
-
-
Survey and measurement
- Moisture content measurement
- EMC Testing
- RF performance testing
- RF systems support
- Spectrum monitoring
-
Infrastructure management
- Sensing and telemetry support
- Traffic monitoring
- Remote control
- Emergency response
-
Position, navigation and timing
- GNSS
- Maritime navigation
- Avionics
- Quantum computing
-
Spectrum management
- Spectrum monitoring
- Source geolocation
- Radio direction finding
-
Survey and measurement
- Design Features
- Low noise figure High bandwidth Good input and output matching Reverse polarity protection Small mechanical dimensions
- Frequency range
- 17000..26500 MHz
- Noise figure @ 18 °C
- 2,8..3 dB (17000...24000 MHz)
- Gain
- typ. 23 dB
- Maximum input power
- 1 mW
- Output power (P1dB)
- min. 5 mW
- Input return loss (S11)
- typ. 10 dB
- Supply voltage
- +9 ... 15 V DC
- Current consumption
- typ. 80 mA
- Operating case temp. range
- -20 ... +65°C
- Input connector / impedance
- SMA-female, 50 ohms
- Output connector / impedance
- milled aluminium
- Dimensions (mm)
- 26 X 25 X 9 mm
- Weight
- 40 g (typ.)
