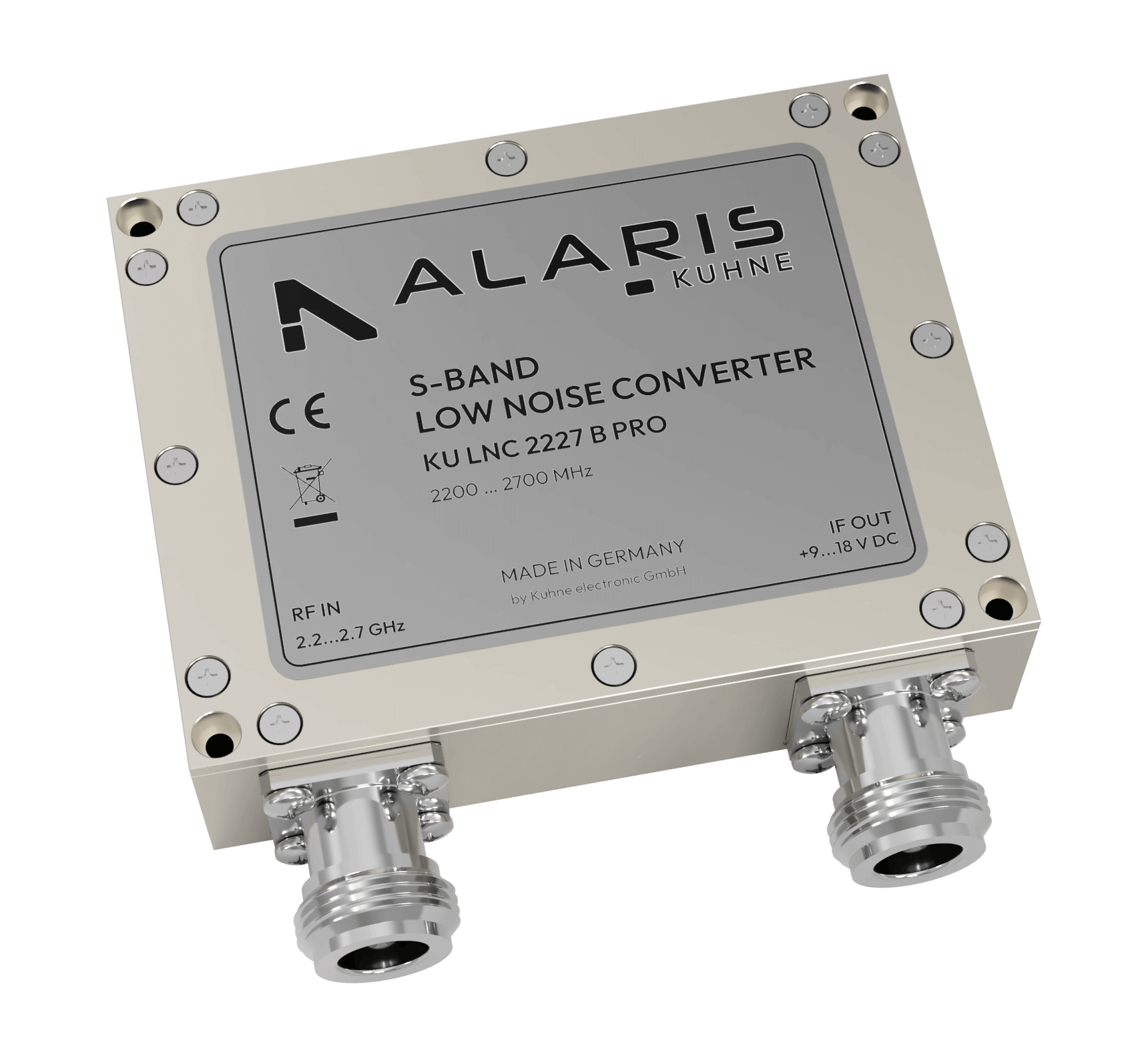

KU LNC 2227 B PRO
Down Converter, 2200 ... 2700 MHz
Download datasheet
This converter was developed for MMDS applications. The S-band is converted to the UHF range 367- 867 MHz. By the use of the latest semiconductors and optimized band pass filters a high dynamic range and good frequency accuracy are achieved. Due to low frequency drift of typ. +/- 3 ppm within 0…+40 degrees C the converter may be used for all digital modulation types.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU LNC 2227 B PRO
Ideal application and market usage
-
Ideal markets
-
-
Telecommunications
- Telecoms providers
- Broadcast
-
Space & Science
- Research institutes and academia
-
Telecommunications
-
Ideal applications
-
-
Broadcast
- Digital broadcast
- Satellite news gathering
- Wireless backhaul
-
Broadcast
- Design Features
- Low noise figure; Large bandwidth; Low phase noise oscillator; High frequency stability of the oscillator; High linearity; Overvoltage protection and reverse polarity protection; Remote power supply via output connector
- Frequency range
- 2200..2700 MHz
- Maximum input power
- 1 mW (0dBm)
- Frequency range (IF), 367..867 MHz
- 367..867 MHz
- Noise figure @ 18 °C, typ. 1.0 dB, max. 1.3 dB
- typ. 1.0 dB, max. 1.3 dB
- Gain @ 25 °C, typ. 30 dB
- typ. 30 dB
- Output IP3, 18 dBm
- 18 dBm
- LO accuracy @ 18 degrees C
- +/- 2 ppm
- LO frequency stability
- +/- 3 ppm
- Phase noise @ 1 kHz Phase noise @ 10 kHz Phase noise @ 100 kHz
- typ. -93 dBc/Hz typ. -98 dBc/Hz typ. -104 dBc/Hz
- Supply voltage
- +9 ... +36 V DC
- Current consumption
- +55 degrees C
- Input connector / impedance Output connector / impedance
- N-female, 50 ohms N-female, 50 ohms
- Dimensions (mm)
- 82 x 64 x 22
- Weight
- typ. 240g
