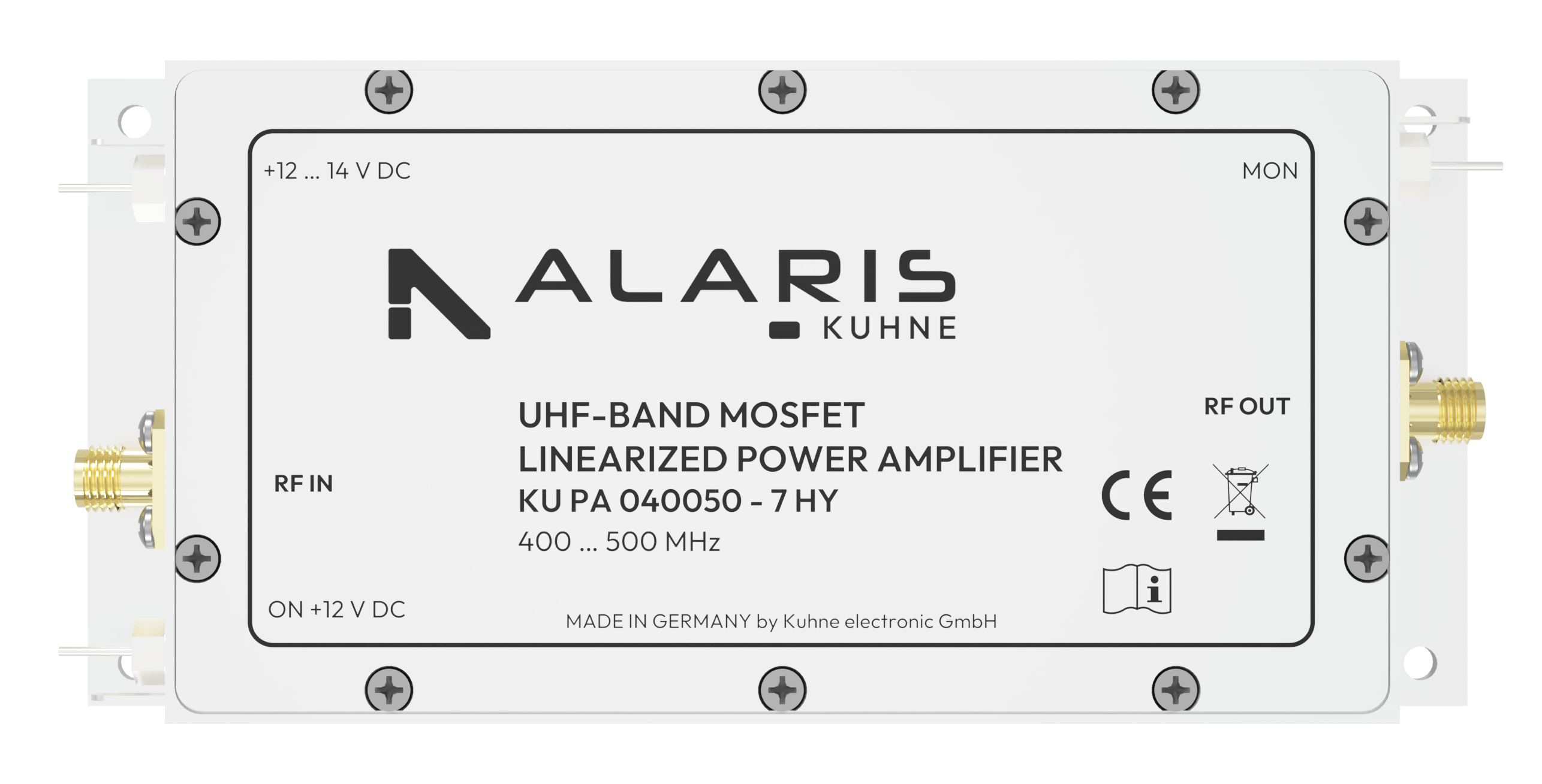

MOSFET Power Amplifier, 400 ... 500 MHz, 7 W (KU PA 040050 - 7 HY)
MOSFET Power Amplifier, 400 ... 500 MHz, 7 W (KU PA 040050 - 7 HY)
Available

KU PA 040050 - 7 HY

MOSFET Power Amplifier, 400 ... 500 MHz, 7 W

Alaris Kuhne logo
Part of the Alaris Kuhne product range
  • Download datasheet

    • MOSFET Power Amplifier, 400 ... 500 MHz, 7 W

    *No payment required on checkout

    Call our Sales team

    +12078920011

    Email our Sales team

    [email protected]

    Specifications & Resources for KU PA 040050 - 7 HY

    Ideal application and market usage

    Ideal applications

    • Broadcast
      • Digital broadcast
      • Wireless backhaul
    Design Features
    Built-in low pass filter for good harmonic rejection High efficiency Reverse polarity protection Monitor output for forward power detection (DC voltage)
    Frequency range
    400..500 MHz
    Output power P3dB
    min. 38.4 dBm (CW) ; min. 7 W (CW)
    Gain (small signal)
    min. 23 dB
    Gain flatness (small signal)
    max. 5 dB
    Harmonic rejection
    min. 60 dB @ 38.4 dBm
    IM3 (Measured 2-tone, frequency spacing: 1 MHz)
    min. 30 dBc @ 34.7 dBm PEP
    Efficiency
    typ. 40 %, min. 30 % @ 38.4 dBm (CW)
    Supply voltage
    +12 ... 14 V DC
    Operating case temp. range
    -20 ... +55°C
    Dimensions (mm)
    130 x 60 x 20

    Accessories

    Products that work well with KU PA 040050 - 7 HY

    Power Supply 12V DC
    RSP 150 W 12

    Power Supply 12V DC

    Fan Controller
    KU LS2 PWM

    Fan Controller

    Heat Sink 150 x 62 x 75
    SK 150 - 62

    Heat Sink 150 x 62 x 75

    Fan 60 x 60, 12 V
    FAN-60-60-12V

    Fan 60 x 60, 12 V
