KU PA 070080 - 20 A

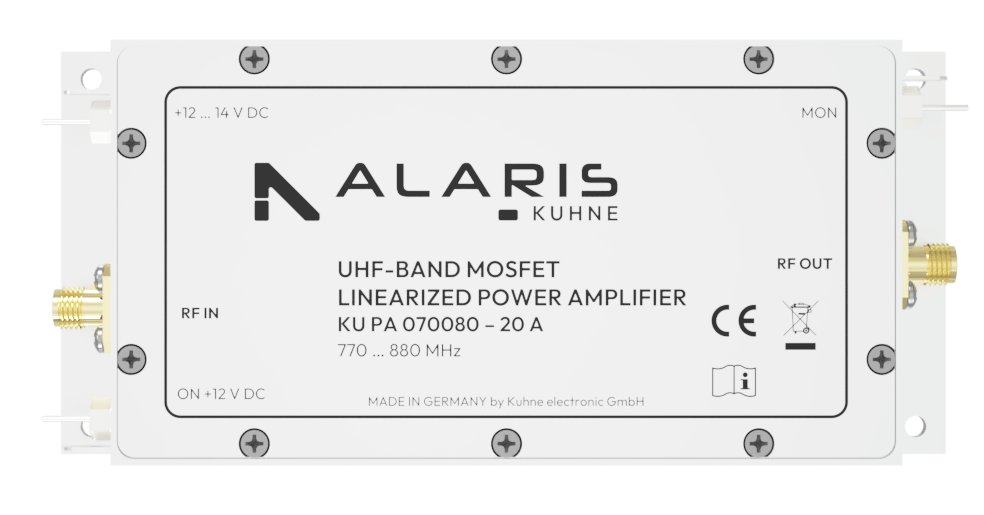

RF Power Amplifier, 770 ... 880 MHz, 20 W
Download datasheet
The power amplifier is developed both for digital and analog transmission systems. It's frequency range is chosen to cover the new UHF frequencies for the cellular phone network completely. By the use of LD-MOSFET-technology high efficiency and low current consumption are reached at the same time.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU PA 070080 - 20 A
Ideal application and market usage
-
Ideal applications
-
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Broadcast
- Design Features
- LD-MOSFET-technology Reverse polarity protection Monitor output for forward power detection (DC voltage) Milled aluminium case
- Frequency range
- 770..880 MHz
- Output power P1dB
- min. 43 dBm (CW)
- Saturation power
- min. 30 W
- Output power COFDM (1)
- min. 37 dBm
- Gain (small signal)
- min. 30 dB
- Gain flatness (small signal)
- max. 6 dB
- Harmonic rejection
- min. 30 dB @ 43 dBm
- Efficiency @ 44.7 dBm (CW)
- min. 40 %
- Supply voltage
- +28 V DC
- Current consumption
- max. 3.5 A
- Operating case temp. range
- max. 3.5 A
