Available
WK 18-07

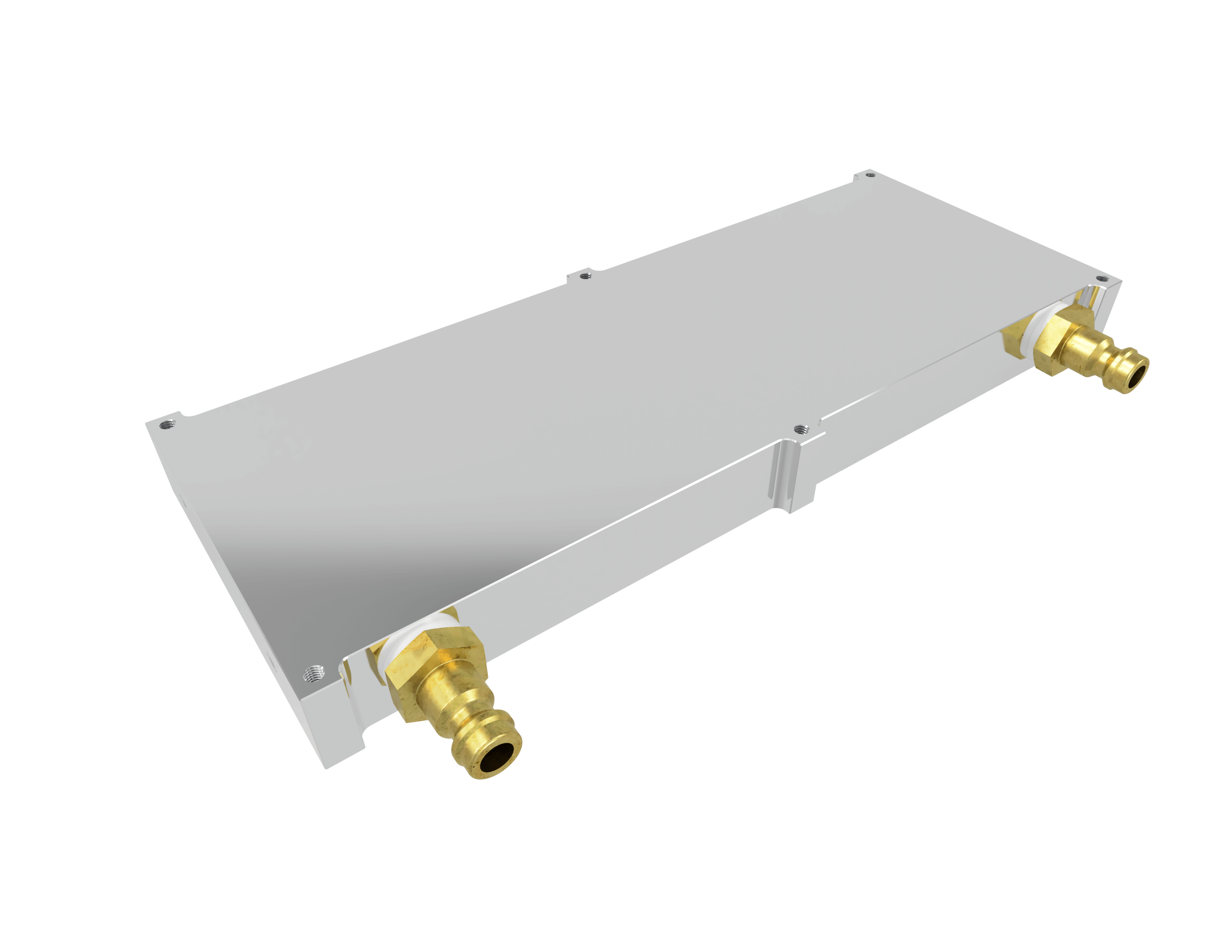

Liquid Cooling Heatsink
Download datasheet
Liquid heat sink for dissipating large amounts of heat with a small footprint. Is an effective system to cool power modules. It is suitable for water pH 6.5-8.5 with anti-corrosion agent and other fluids. Suitable for KU SG 2.45-450 A
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for WK 18-07
Ideal application and market usage
- Design Features
-
Liquid heat sink for water and other cooling liquids The highest possible cooling capacity in the smallest possible space Suitable for KU SG 2.45-450 A
- Flow rate
- 250 - 1.200 l/h
- Operating Pressure
- max. 4 bar

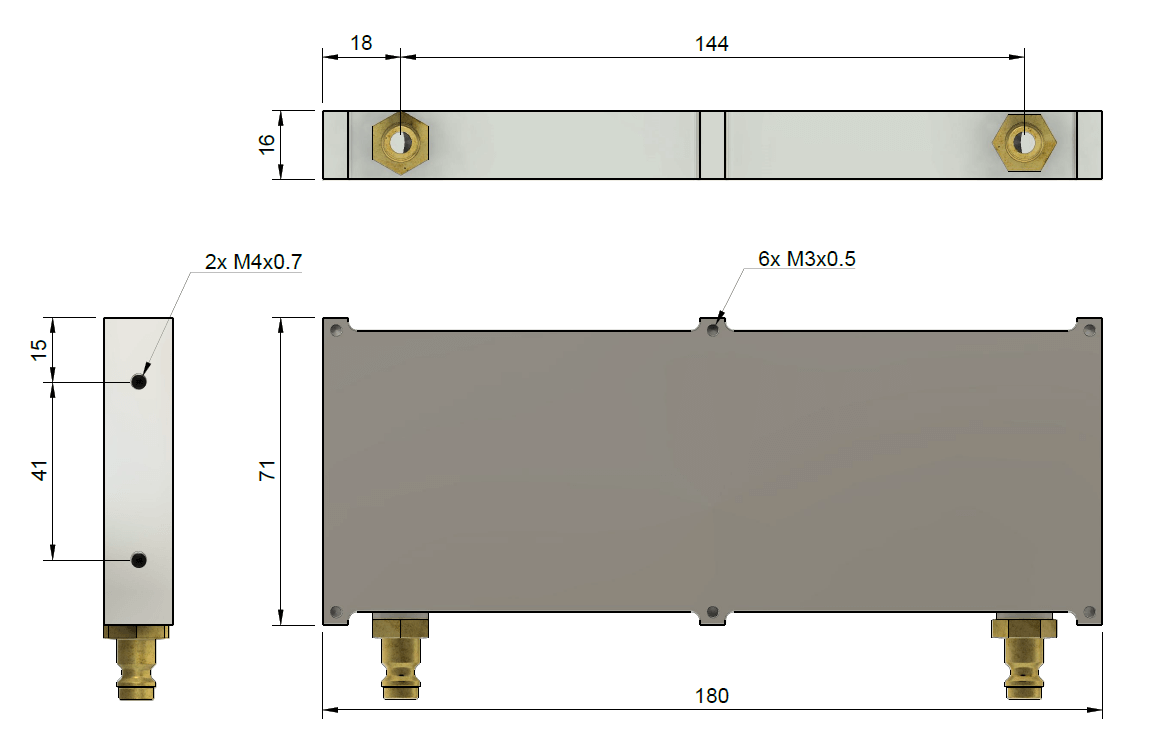

- Dimensions
- 180 x 71 x 18 mm
- Coolant
- H2O, Glycol/H2O, de-ionized water, oil, POA
- Connection
- NW5-G-18-AG quick release
- Weight
- 400 g (typ.)
Accessories
Products that work well with WK 18-07
