MONO-A0076
HF Passive Monopole
Download datasheet

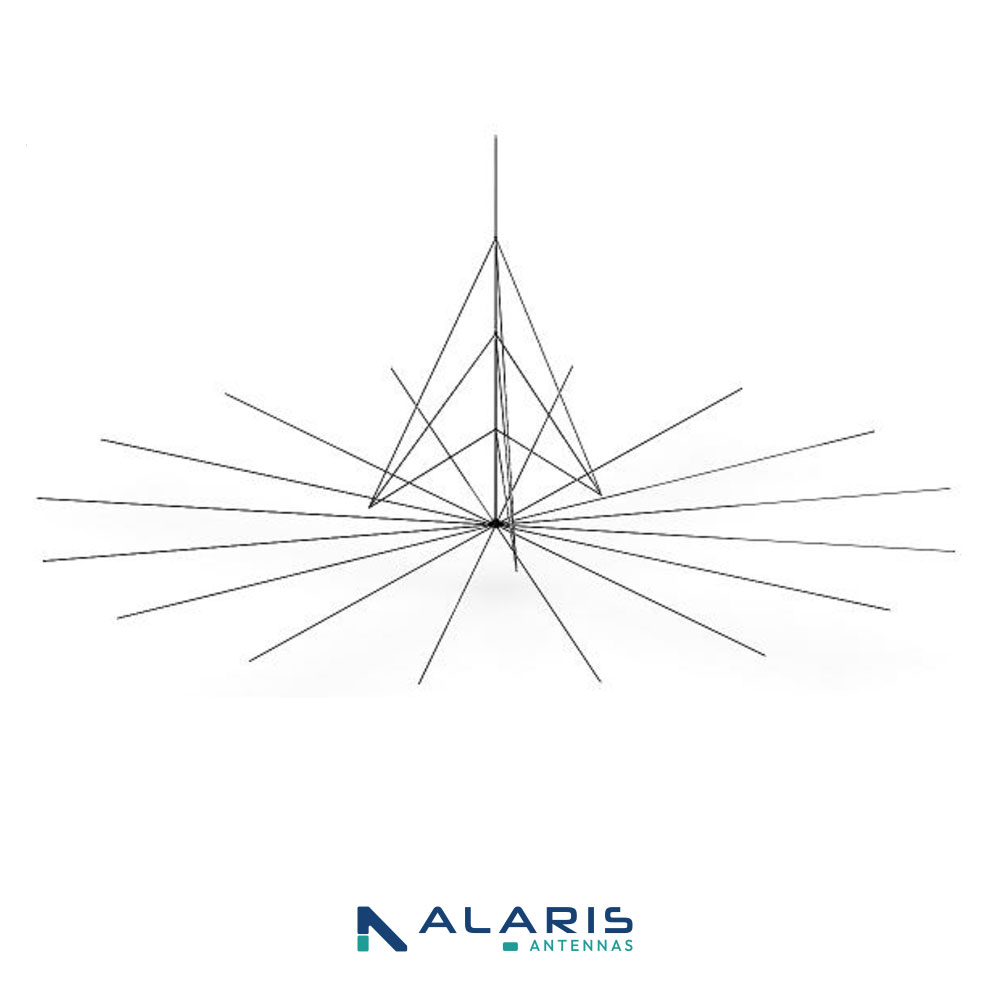

The HF passive whip monopole antenna is designed for deployment on open ground or permanent installation and includes a deployable groundplane. The antenna’s radiation pattern is suitable for medium to long range HF monitoring. It can be deployed as part of either a linear or circular array and is quickly and easily deployed and stowed. The product can be rapidly deployed by two people within 30 minutes but can also be bolted to a plinth for semi-permanent installations. The antenna is intended for use in constructing DF interferometer arrays consisting of a number of MONO-A0076 antennas.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for MONO-A0076
Ideal application and market usage
-
Ideal markets
-
-
Safety & Security
-
Safety & Security
-
Ideal applications
-
- Electronic Surveillance
- Design Features
- 1 to 30 MHz frequency range. Rugged. Quick deployment time. Self-contained groundplane. Glass fibre insulated radiator.
- Frequency range
- 1 - 30 MHz
- Polarisation
- Vertical
- Gain
- See graph
- Nominal input impedance
- 50 Ω
- Connector
- N-type female
- Length
- 9 m
- Total mass
- < 30 kg excluding packaging
- Base dimensions
- 300 m x 300 mm
- Groundplane diameter
- 20000 mm
- Mounting method
- Free-standing on the ground. Can be bolted to a concrete plinth
- Wind survival
- 120 km/h (5 mm ice) (when fitted with guy ropes)
- Water ingress rating
- IP66
- Shock and vibration
- Designed for MIL-STD 810E 516.4: vibration category 8, shock 40 g during transport
