KU PA BB 010600 – 15 A
Wideband Power Amplifier, 100 ... 6000 MHz, 15 W
Download datasheet

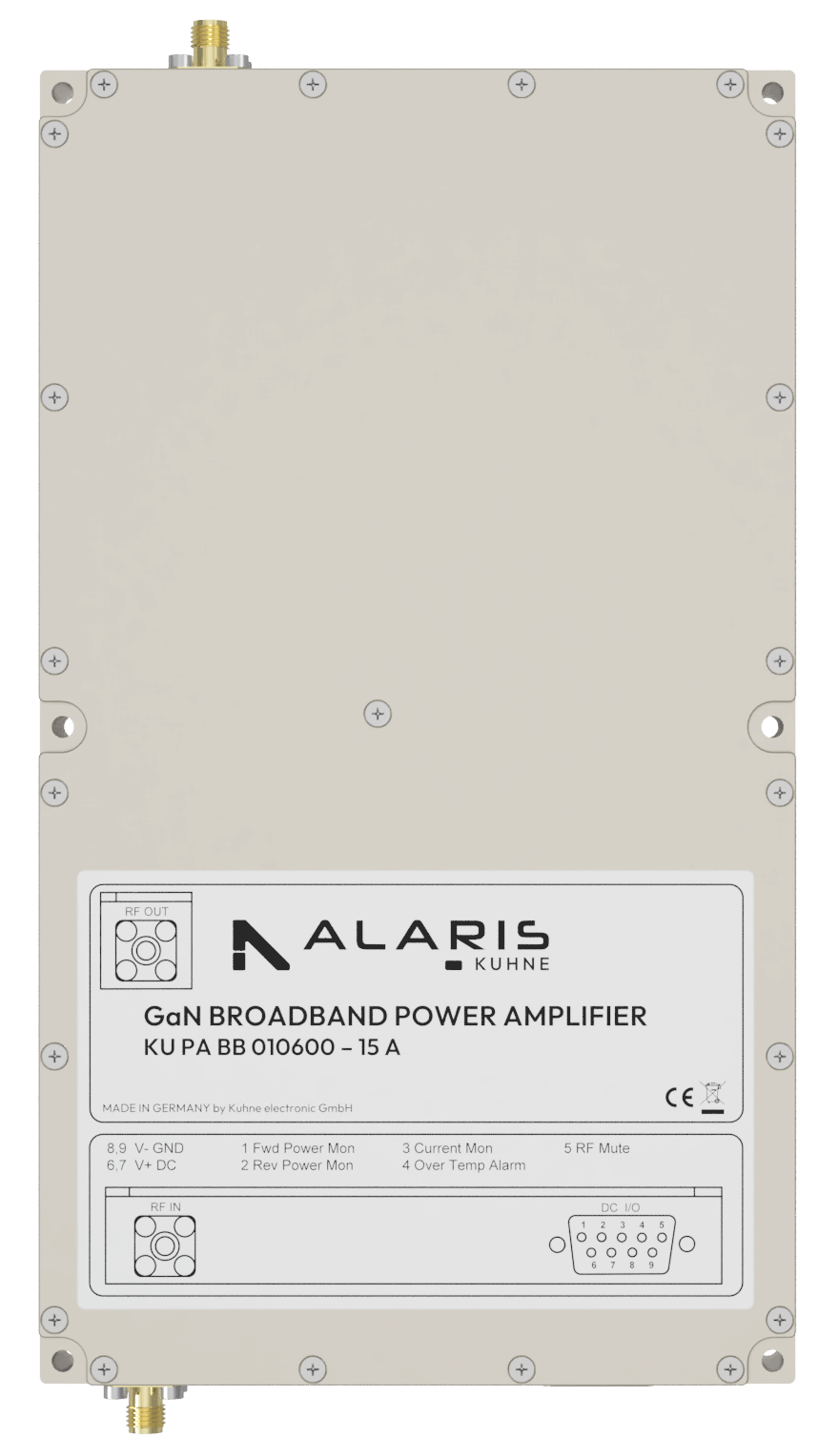

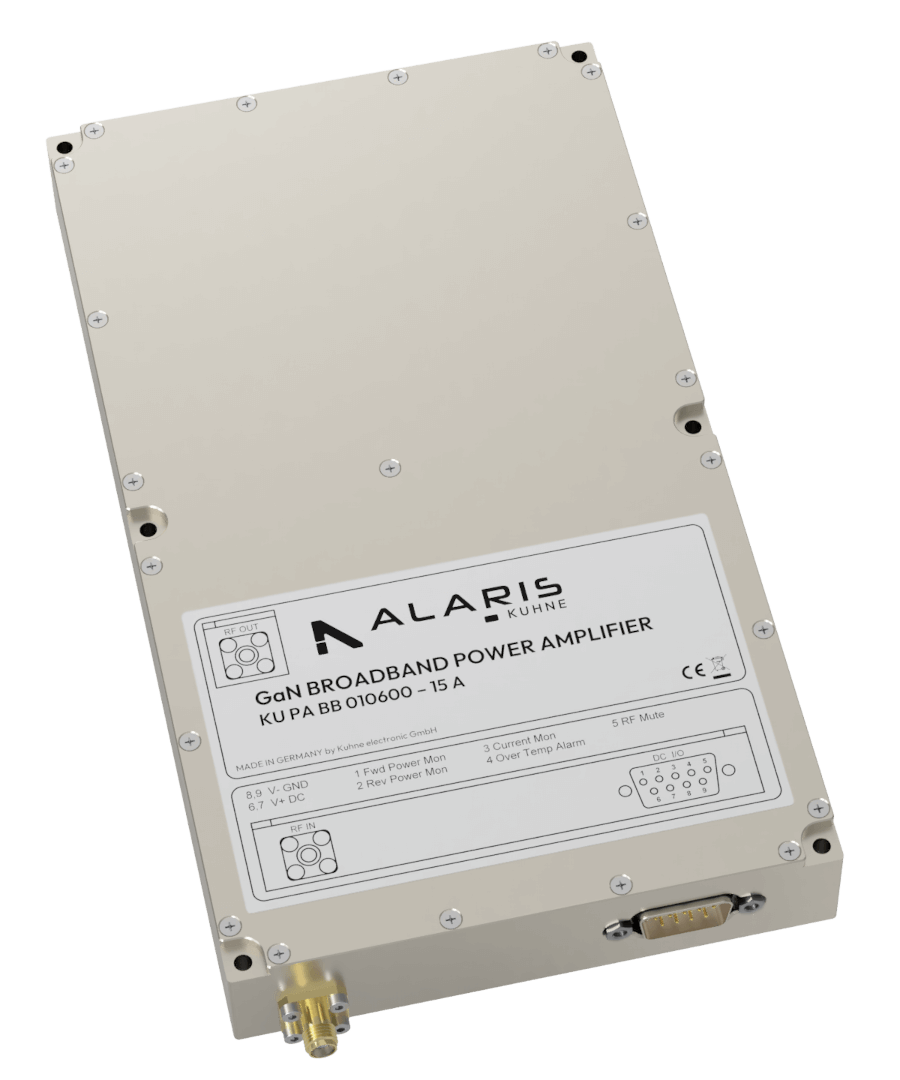

The KU PA BB 010600-15 A has a gain of at least 35 dB in large-signal operation at 15 W output power and can therefore be fed with a low input power of less than 2 mW. The amplifier has many monitor and control signals, for example the monitoring of temperature, current consumption, forward and reverse power as well as a fast mute function for switching off the RF signal.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU PA BB 010600 – 15 A
Ideal application and market usage
-
Ideal applications
-
-
Survey and measurement
- EMC Testing
- RF performance testing
- RF systems support
-
Position, navigation and timing
- GNSS
-
Electronic countermeasures
- Counter UAS
- Counter RCIED
- Comms jamming
-
Survey and measurement
- Design Features
-
High bandwith Variety of analog monitor signals Very fast mute functionality High efficiency Low small and large signal gain ripple
Applications
Analog & digital transmission systems Measurement and laboratory equipment Communication systems Jammer applications The KU PA BB 010600 – 15 A was specially developed for jammer applications. Due to the high bandwidth and, at the same time, low gain ripple, the power amplifier can interfere with all mobile radio bands and many wireless standards. - Frequency range
- 100 … 6000 MHz
- Input power for 3 P3dB
- typ. 3 dBm, max. 5 dBm
- Output power Psat 0.1-1.0 GHz
- 15 W typ. @ 0-5 dBm input power
- Output power Psat 1.0-3.0 GHz
- 10 W typ. @ 0-5 dBm input power
- Output power Psat 3.0-6.0 GHz
- 8 W typ. @ 0-5 dBm input power
- Small signal gain
- ≥40 dB
- Large signal gain
- ≥35 dB @ 0dBm Pin
- Output protection
- isolator
- Supply voltage
- +16 V ... +28 V DC
- Current consumption @ P3dB @ 28 V DC
- max. 8 A
- Operating case temperature range
- -20 … +55 °C
- Weight
- 950 g (typ.)
- Dimensions (mm)
- 200 X 115 X 25 mm
- Case
- milled aluminium,nickel plated IP20
