LW30-797783

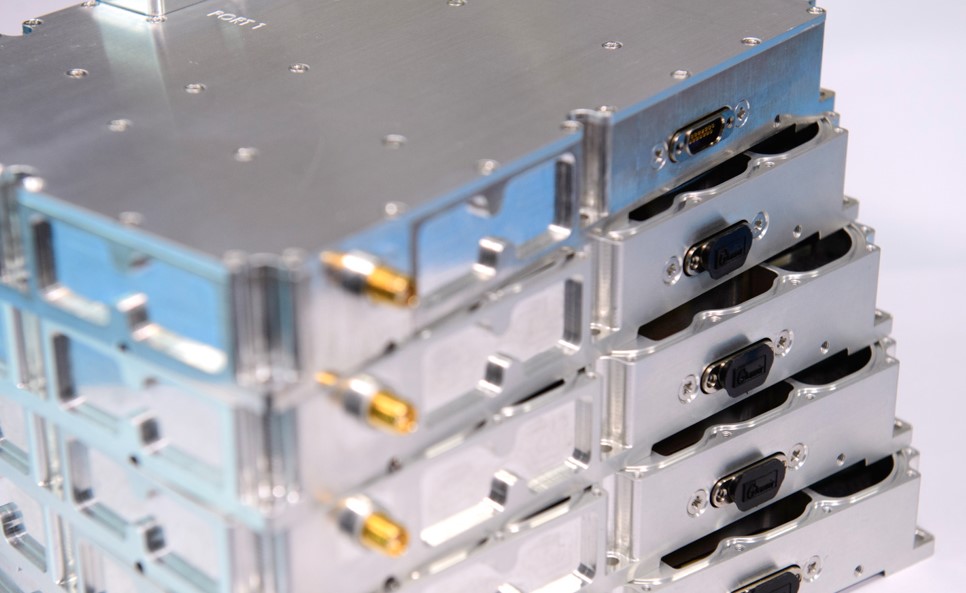

Ka Band Block Upconverter (BUC) 29.0 to 30.0GHz, 8W
Download datasheet
The LW30-797783 is a high performance power BUC with an integral driver and GaN power amplifier sections. The design allows for flexibility in the customers’ requirements with a number of additional features being available. Extended temperature range and harsh environment models are also available. Please contact factory for alternative connector and frequency options.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for LW30-797783
Ideal application and market usage
-
Ideal applications
-
-
Broadcast
- Satellite news gathering
-
Broadcast
- Design Features
- IESS 308/309 compliant Adjustable gain Temperature compensated GUI controlled (RS-422 protocol) iDirect OpenBMIP™ Standard compatible Integral high performance output filtering
- Input Frequency range
- 950 to 1950 MHz
- ACPR at MOP (8PSK
- -20dBc
- Gain ripple over frequency (1GHz band, fixed temp at MOP
- 3dB p-p
- Gain ripple over temperature (fixed frequency at MOP)
- 3dB p-p
- Gain Control range (IF input attenuator)
- 20dB
- Spurious Outputs (Signal related in band
- "-60dBc"
- Spurious Outputs (LO leakage
- -45dBc
- Power Consumption at MOP (+28V supply)
- 105W
