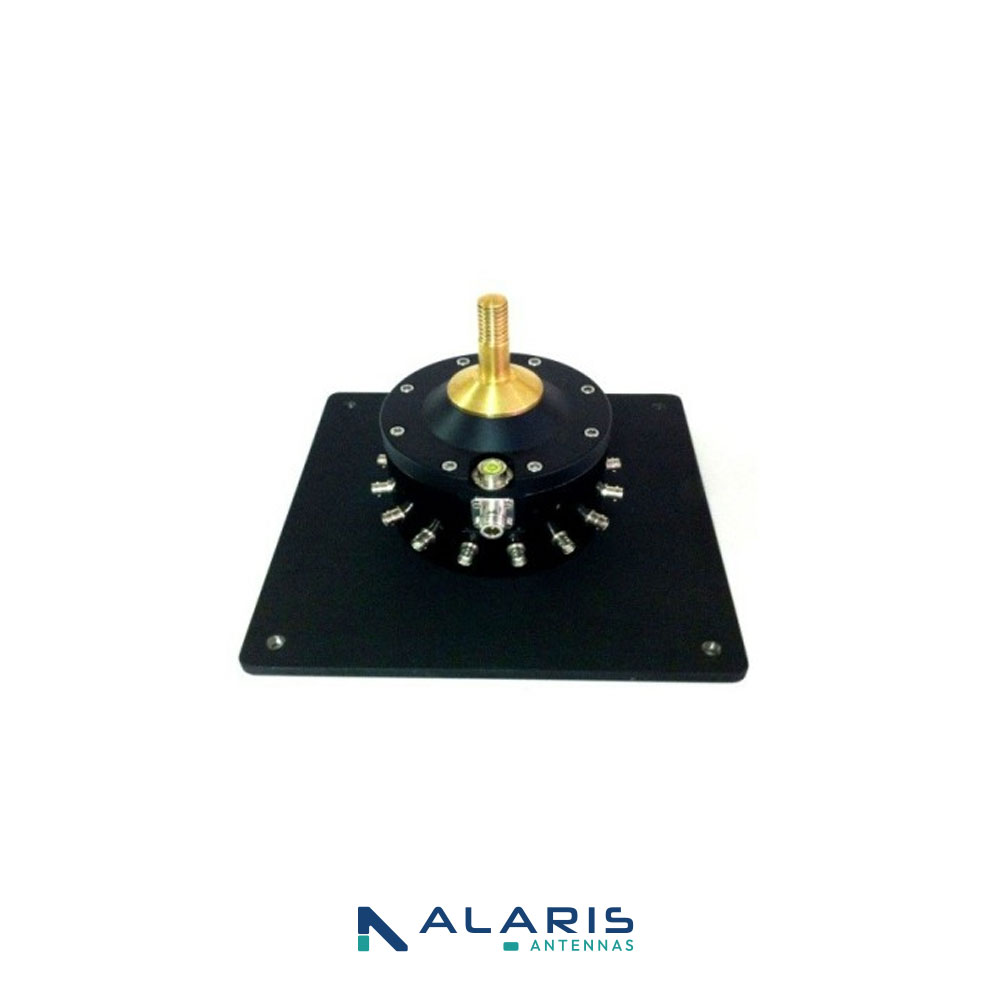

HF Active Monopole
The HF active whip monopole antenna is designed for deployment on open ground or permanent installation and includes a deployable groundplane. The antennas’ radiation pattern is suitable for medium to long range HF monitoring. This antenna uses an operational amplifier as the active component of the antenna which operates from 9 kHz to 30 MHz The product features a passive bypass mode which comes into operation when the antenna is powered down. In this mode, the active matching and amplification circuitry is bypassed and the antenna operates as a completely passive receiving antenna.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for MONO-A0071
-
Ideal markets
-
-
Safety & Security
-
Safety & Security
-
Ideal applications
-
- Electronic Surveillance
- Design Features
-
9 kHz to 30 MHz frequency range
Rugged
Quick deployment time
Self-contained groundplane
Glass fibre insulated radiator
Lightning induced surge and static protection
Passive bypass mode option
- Frequency range
- 9 kHz - 30 MHz
- Polarisation
- Vertical
- Nominal input impedance
- 50 Ω
- Connectors
- N-type female
- Sensitivity in 1 Hz bandwidth
- Better than 1 µV/m
- OP1, OIP2, OIP3
- 24 dBm, 43 dBm, 33 dBm
- Input voltage
- 12.5 - 15.5 VDC
- DC input current (max)
- 400 mA
- Length
- 2.9 m
- Total mass
- 14 kg excl packaging
- Base dimensions
- 300 mm x 300 mm
- Groundplane diameter
- 6000 mm
- Mounting method
- Free standing on the ground; Levelling feet provided; Can be bolted to a concrete plinth
