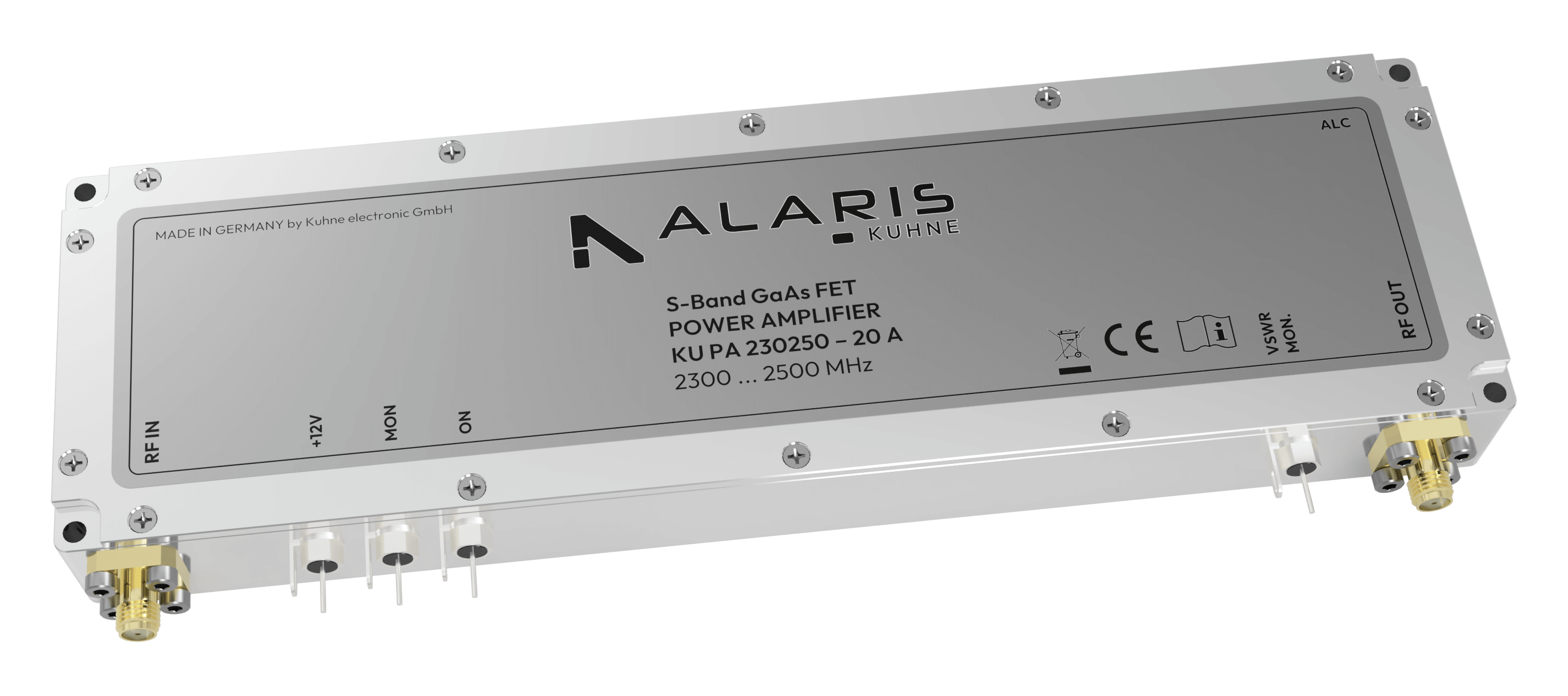

GaAs-FET Power Amplifier, 2300 ... 2500 MHz, 20 W
Download datasheet
GaAs-FET Power Amplifier, 2300 ... 2500 MHz, 20 W
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU PA 230250 - 20 A
Ideal application and market usage
-
Ideal markets
-
-
Industrial
- Aviation
- Test and Measurement
-
Safety & Security
- Policing
- Defence
- Homeland security
- Border control
-
Telecommunications
- Telecoms providers
- Broadcast
-
Space & Science
- Research institutes and academia
- Security services
-
Industrial
-
Ideal applications
-
-
Survey and measurement
- EMC Testing
- RF performance testing
- RF systems support
- Spectrum monitoring
-
Position, navigation and timing
- Avionics
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Survey and measurement
- Design Features
- GaAs FET technology High linearity (class A operation) Good harmonic rejection Isolator for protection against high VSWR Reverse polarity protection Monitor outputs for forward and reverse power detection (DC voltage) Adjustable ALC (automatic level control) ON / OFF control with DC voltage (ON at 5 ... 14 V)
- Frequency range
- 2300..2500 MHz
- Output power P1dB
- typ. 43.8 dBm, min. 43 dBm (CW) ; typ. 24 W, min. 20 W (CW)
- Output power P3dB
- min. 44 dBm (CW) ; min. 25 W (CW)
- Output power COFDM
- min. 38.4 dBm (1) ; min. 7 W (Measured with QAM 64, single carrier, EVM: 2%)
- Gain (small signal)
- typ. 54 dB, min. 53 dB
- Gain flatness (small signal)
- typ. +/- 1 dB
- Harmonic rejection
- typ. 60 dB, min. 55 dB @ 43 dBm
- IM3 @ 40 dBm PEP
- typ. 40 dBc
- Efficiency
- min. 20 % @ 43 dBm (CW)
- Supply voltage
- +11 ... 14 V DC
- Current consumption @ P1dB
- -20 ... +55°C
- Current consumption @ P1dB
- typ. 8 A
