KU PA 190250 - 80 LIN

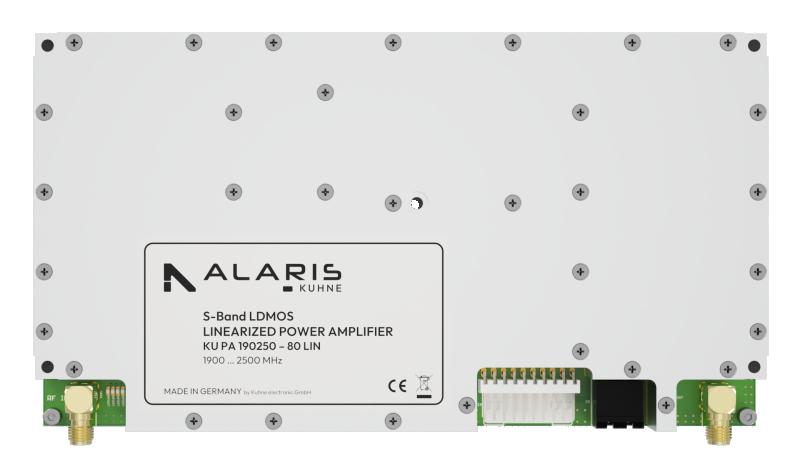

LDMOS Power Amplifier, 1900 ... 2500 MHz, 10 W COFDM Linear S-Band Power Amplifier
Designed for applications such as Digital broadcast systems (DVB-T, DVB-S), COFDM systems using modulation types QPSK, QAM and Multichannel Multipoint Distribution Service (MMDS) the KU PA 190250 - 80 LIN is a highly capable linearized power amplifier for high linearity and high data-rate applications. The unique feature of RF-predistortion compensates for inherent non-linearity of power amplifiers and guarantees exceptional low EVM levels.
*No payment required on checkout
-
Call our Sales team
- +12078920011
-
Email our Sales team
- [email protected]
Specifications & Resources for KU PA 190250 - 80 LIN
-
Ideal applications
-
-
Broadcast
- Digital broadcast
- Wireless backhaul
-
Broadcast
- Design Features
-
LDMOS FET technology
High linearity (built-in linearizer)
Good harmonic rejection
Isolator for protection against high VSWR
Monitor outputs for forward and reverse power
detection (DC voltage)
ON / OFF control with DC voltage (ON at 3 ... 14 V)
Adjustable ALC (automatic level control)
Serial interface
- Frequency range
- 1900 … 2500 MHz
- Input power normal operation
- +5 … 10 dBm
- Input power maximum
- +10 dBm
- Output power COFDM
- typ. 40 dBm / typ. 10 W
- Gain Flatness with ALC (small signal)
- typ. +/- 1 dB
- Harmonic rejection @ 40 dBm
- typ. 60 dB
- Output protection
- Isolator
- ON voltage
- +3 ... 14 V DC
- Supply voltage
- +28 … 32 V DC
- Quiescent current
- typ. 1.4 A
- Current consumption
- typ. 3.5 A @ 10 W
- Forward and Reverse detection
- yes (RMS detector)
- Operating case temperature range
- -20 … +55 °C
- Input and Output connector / impedance
- SMA-female, 50 ohms
- Case
- milled aluminium
- Dimensions (mm)
- 184 x 100 x 20
- Weight
- typ. 550 g
